Carburetor Floats and other parts

For Schebler D & Krice Marine

Carb Floats Available

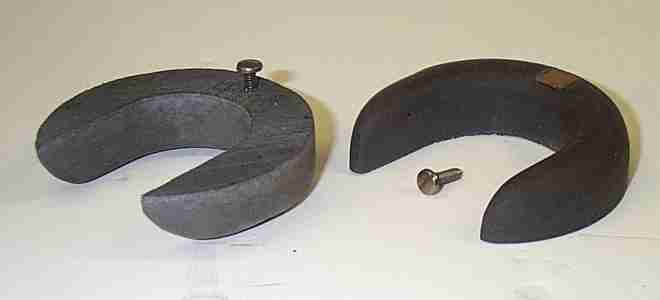

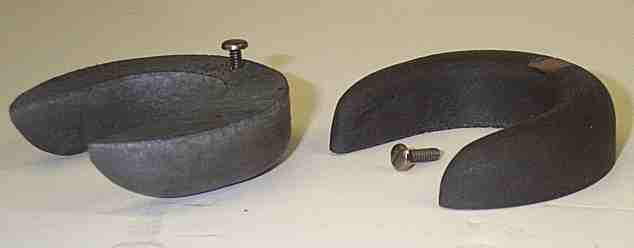

  • 3/4" Schebler "D" see picture below:
  • 1" Schebler "D" see picture below:
  • 1 1/4" Schebler "D" see picture below:
  • 1 1/2" Schebler "D" same as above only bigger.
  • 2" Schebler "D" same as above only larger. Same as JD DLTX1 p/n AR10012
  • 3/4" Schebler round donut float (2"OD)as used on antique motorcycle carbs
  • Krice round donut float (3" OD)
  • Krice round donut float (3 1/4" OD)
  • Brass Schebler "D" parts below: see Oldmarine link for illustrations.
  • Brass spray nozzle (jet) for 1" & 1 1/4" part # "D" out of stock.
  • Brass needle valve only without stuffing nut 1" & 1 1/4" part # "E"Out of stock.
  • Brass 3/4-18 threaded cover for float valve on 1" and 1 1/4" part # "U" at $15.00 each.
  • Brass threaded adapter and nut for fuel intake part # "G"$20.00/set for one nut and one threaded adapter.
  • Leather disc for choke intake part # "A"$5.00/ea. Have these for 3/4" and 1" only for now. Please specify which size carb you have. All 6 sizes are different.
  • I have a limited number and selection of other parts for the Schebler D. Please email me for any requests.

    To see the Schebler "D" instructions and parts list click HERE Use your browser's back button to return to this site. For the instructions and other marine information see the site at the following link:CLICK HERE for

    These new style alcohol resistant carburetor floats are currently available at $27.00 each postpaid in the USA. You may take a $1.00 discount per float from this price if paying by check or money order.
    Please note that the Schebler Carbs are sized by Pipe thread size NPT of where the carb screws onto the manifold. This is not the outside diameter of the threads, this is the pipe thread size NPT.
